Part CNC Programming
Utilizing state of the art cad cam supporting 2 axis cnc lathe and 4 axis cnc milling
Quality Precision Parts
Quality personel, solid manufacturing knowledge and proper tools coupled with a drive for excellence

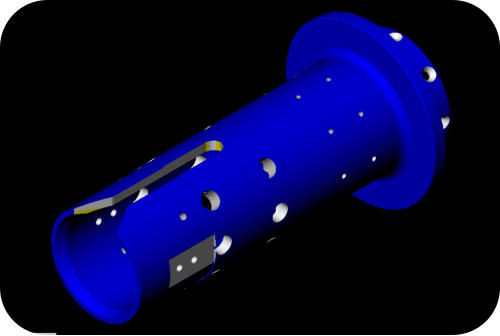

GibbsCam Cad Cam rotary 4th axis milling
and 2 axis lathe programming

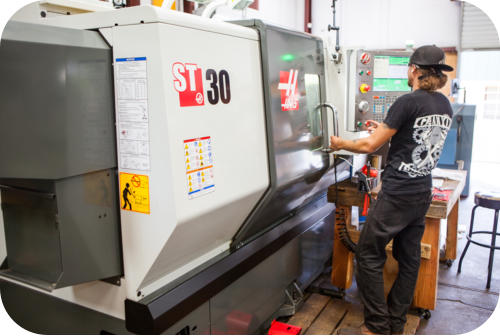

HAAS ST30 cnc lathe:
12" Chuck, 12 station turret, 21" x 26" max
capacity, 3.0" bar, 31.75" swing.

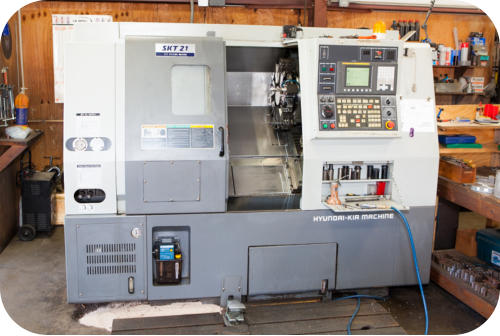

Hyundai Kia cnc lathe:
8" Chuck, 13" Max Turning Diameter
12" Between Centers, 12 position turret

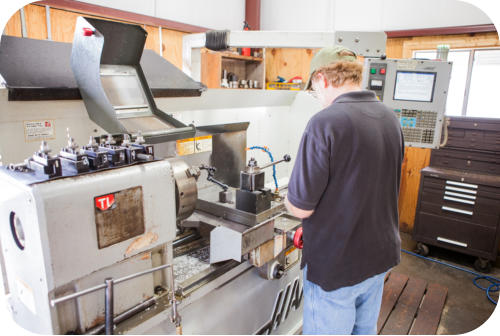

HAAS TL3 cnc lathe: Maximum cutting
capacity of 20" (dia) by 60" (length), with a
maximum part swing of 20" over the front
apron and 13" over the cross slide.

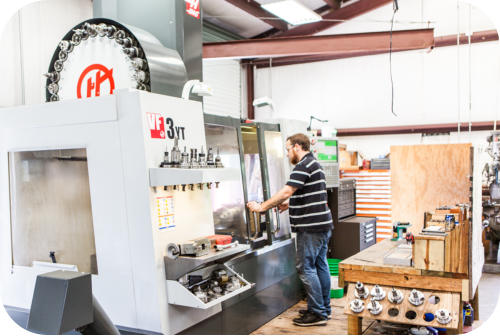

HAAS VF3 cat50 vertical machining center
40" X 26" X 25", 31 tool carriage, 4th axis

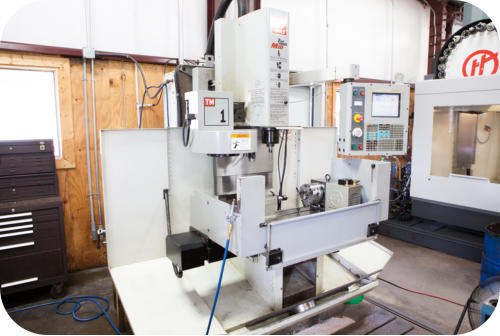

HAAS TM1 cat40 vertical milling center
XYZ travels of 30" x 12" x 16", 10 tool
carriage, 4th axis
Additional equipment includes:
Kingston Manual Lathe
Bridgeport Mill
TESA Micro-Hite 6+M
